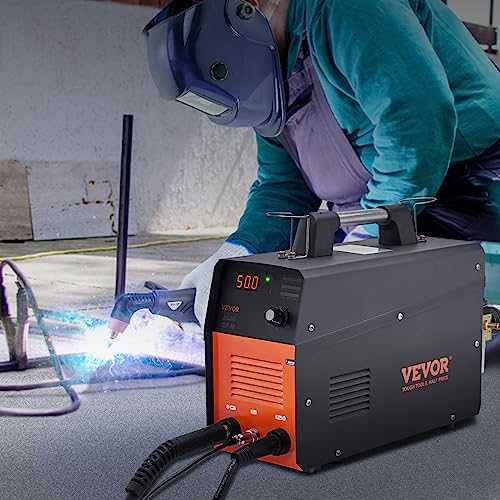

VEVOR Plasma Cutter, 50Amp, Air Cutting Machine with Plasma Torch, 110V/220V Dual Voltage AC IGBT Inverter Metal Cutting Equipment for 1/2″ Clean Cut Aluminum and Stainless Steel, Black

Brand: VEVOR

Color: Black

Features:

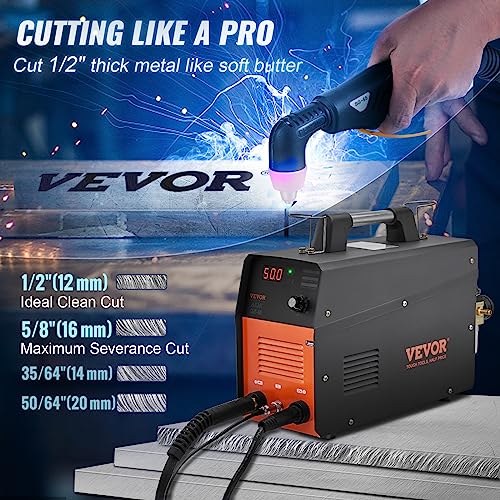

• Outstanding Cutting Capacity: Are you ready to cut like never before? The plasma cutter can cut different thicknesses under different voltages. It delivers a consistent and precise current to cutting surfaces. Cut 1/2″ thick metal like soft butter. Ideal Clean Cut: 1/2″(12 mm). Maximum Severance Cut: 5/8″(16 mm).

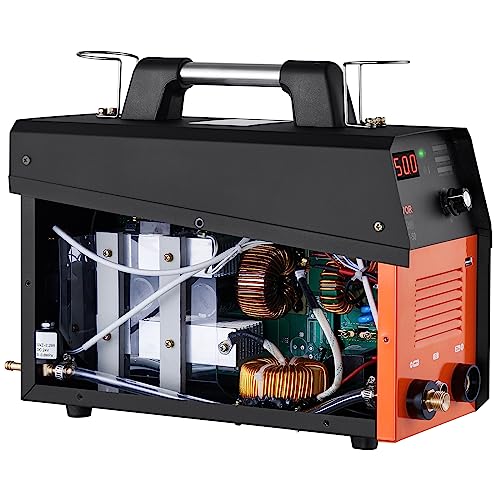

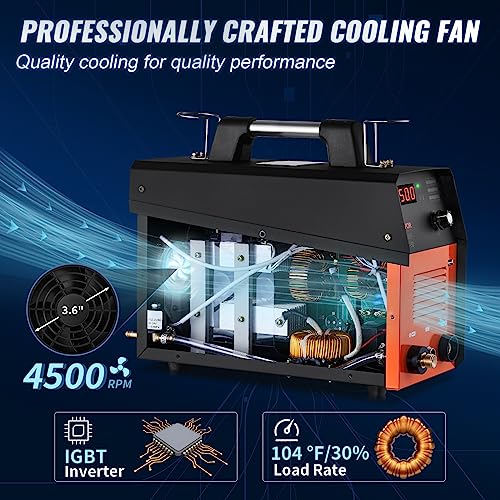

• All Safety No Heat: The unique air channel design increases the heat dissipation of the power device. The IGBT inverter will greatly improve the performance of the plasma cutting machine. The outstanding 30%@104 °F, 50A; 60%@104 °F, 33A; 100%@104 °F, 25A duty cycle can also ensure long-time cutting.
• 50AMP Premium Cutter: Use non-hazardous compressed air to cut aluminum, stainless steel, mild steel, copper, and other metals. Suitable for a wide range of applications, including sheet metal fabrication, light industrial, automotive repair, plumbing work, and other maintenance services. You’ll be prepared to take on any challenge!

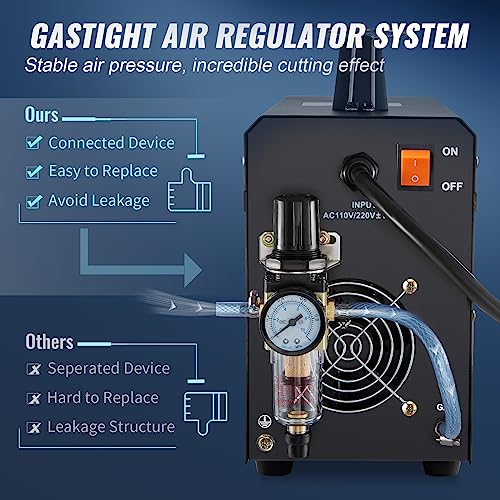

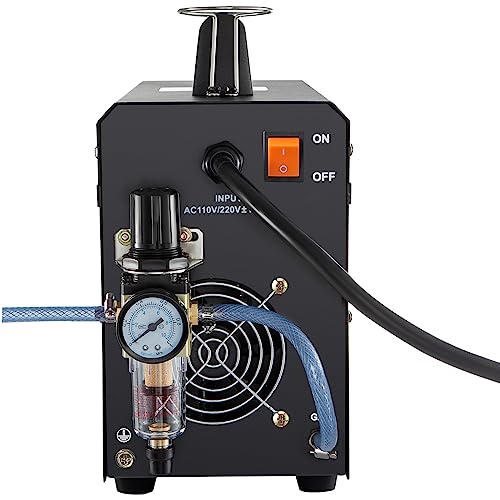

• Sharper than Sharp: The gastight air filter regulator allows you to quickly connect to your air compressor. It can lower or maintain air pressure to reach effective cutting. And you can cut through rough, painted, and rusty surfaces while producing minimal slag without any air leakage.
• More than You Expected: The extra long 16.4′ plasma torch and 6.56′ ground clamp with cable offers maximum convenience by extending your working area. Quit wasting time searching for an extension cord and adapter. The kit also includes an air regulator, air hose, 4 hose clamps, 2 cable racks, and some consumables.

Package Dimensions: 274x485x8981

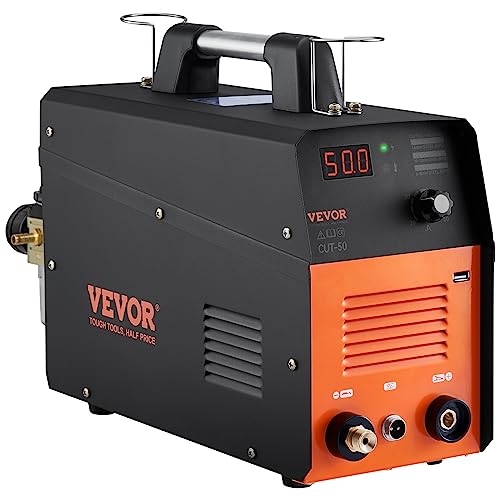

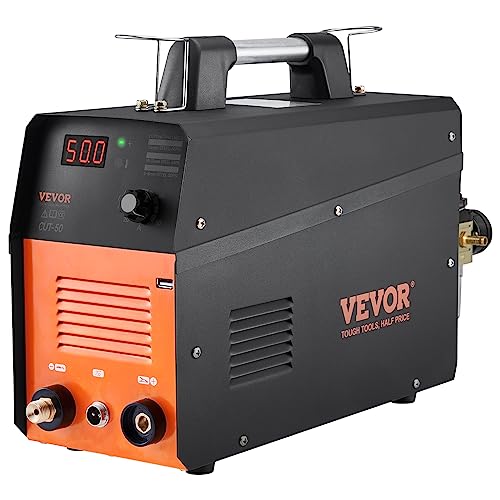

Details: Specifications
Model: VV-PC-CUT50
Arc Striking: Contact
Input Voltage: AC110/220V±10%
Output Current: 110V: 20-40A; 220V: 20-50A
Ideal Clean Cut: 1/2″/12 mm
Maximum Severance Cut: 5/8″/16 mm
Cutting Material: Aluminum, Stainless Steel, Mild Steel, Copper
Duty Cycle: 30%@104 °F, 50A；60%@104 °F, 33A；100%@104 °F, 25A
Power Factor: 0.8
Efficiency: 0.86

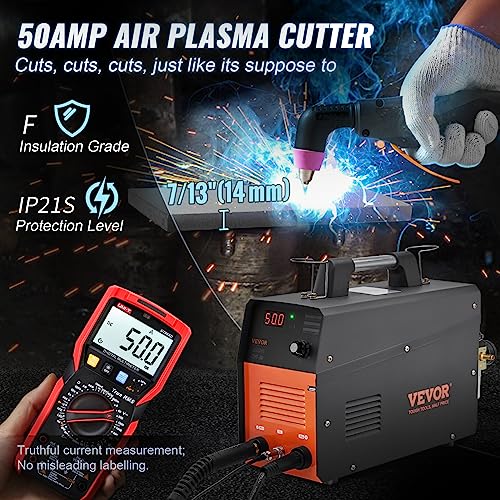

Insulation Grade: F
Open Circuit Losses: 220V 14W; 110V 56W
Operating Air Pressure: Less than 0.5MPa
Access Air Pressure: Less than 0.8Mpa
Enclosure Protection Level: IP21S
Item Weight: 22lb/9.98 kg

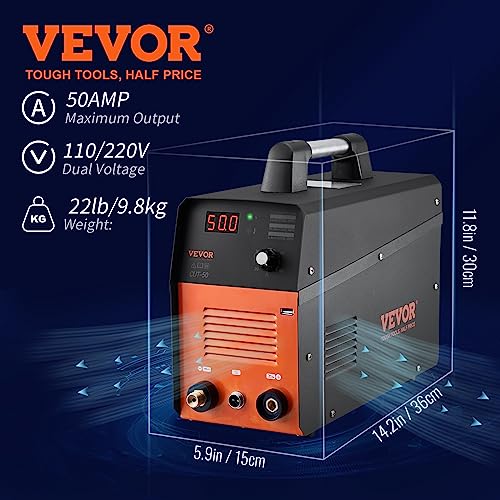

Item Size: 14.2″ x 5.9″ x 11.8″/36 x 15 x 30 cm

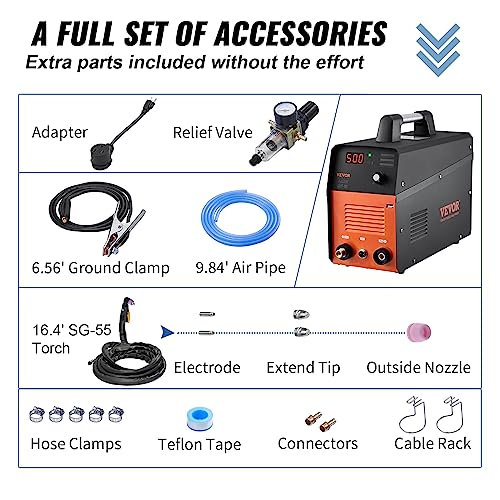

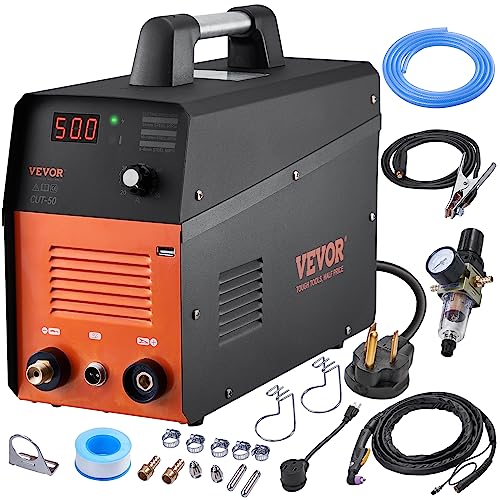

Package Content
1 x 16.4FT/5 m SG55 Cutting Torch
1 x 6.56FT/2 m Ground Clamp
1 x Relief Valve + 2 Connectors
1 x 9.84FT/3 m Air Pipe
4 x Hose Clamps
1 x Teflon Tape
2 x Cable Racks

UPC: 840281543847
